Next Generation Combination Outdoor Antenna

We Make Solutions Practical, Valuable, & Secure

Vehicle

Outdoor

Rural Area

9in1-Ant__1___1_-removebg-preview (1)

9-in-1 Next Generation Antenna

Advanced Multi-Band Antenna

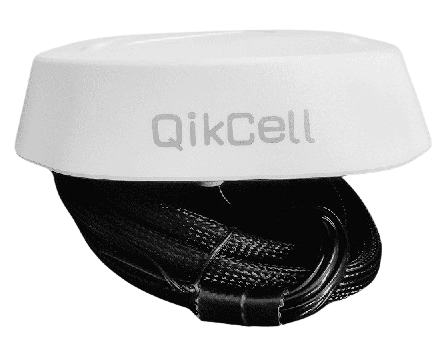

The QikCell QC9131 is a 9-in-1 next-generation permanent mount antenna for various indoor/outdoor applications. It is IP67 rated with a waterproof PC enclosure and base. The nine internal antennas support 4G/5G, GPS, and Wi-Fi 6 / 7. Our QC9131 antenna delivers powerful MIMO technology, it is optimized for GPS locating services and includes backward compatibility to work in most worldwide legacy 2G and 3G bands
9in1_white_ant_3000_X_1500_Px__-_1_-_Edited__1_-removebg-preview (1)

The Key Feature

Valuable

We manufacture IoT antenna designed to withstand harsh outdoor conditions and provide long term reliability.

Customization

All cable lengths and connector types are customizable for your wireless application and frequency bands.

Practical ​

Our antennas are cost competitive. Designed to be flexible for ease of use in any application need.

Features & specifications

Key Features
  • 1.3GHz Dual-core CPU | 1GB PoE Ethernet ports | Enterprise remote management
    service
  • WIFI 6 (802.11ax) | Peak speed up to 3000Mbps | 2.4GHz and 5.8GHz
  • Optional Built-In GPS location service | Optional USB to RS485, GPIOs | USB 3.0
Cellular Frequency Band
  • 5G NR | NSA | n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/
    48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
  • 5G NR | SA | n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/
    48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
  • LTE-FDD | B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/
    66/ 71
  • LTE-TDD | B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 | LAA | B46 | UMTS WCDMA | B1/ 2/ 4/
    5/ 8/ 19
  • GNSS | GPS/ GLONASS/ BDS/ Galileo
Cellular Features
  • Supports NSA and SA modes | Multi-constellation GNSS receiver
  • Qualcomm’s SDX62 platform | 3GPP Release 16 specification
  • Enhanced features such as ultra-high bandwidth, millisecond-level latency, 5G network slicing and ultra-reliability.
  • 5G SA Sub-6 DL 2.4 Gbps; UL 900 Mbps | 5G NSA Sub-6 DL 3.4 Gbps; UL 550 Mbps
  • LTE DL 1.6 Gbps; UL 200 Mbps | WCDMA DL 42 Mbps; UL 5.76 Mbps
Global Support

Covers nearly all the mainstream carriers worldwide with 5G and LTE-A coverage

WiFi
  • ▪ MIMO Configuration: 2×2 (2-stream) | Wi-Fi Security: WPA,WPA2, WPA3
  • Peak Speed: 3000Mbps | Wi-Fi Spectral Bands: 2.4 GHz, 5 GHz
  • 802.11ax /802.11ac /802.11n/802.11g/802.11a/802.11b
  • Enable/Disable Broadcast SSID | Radio Transmission Power Adjustment ( 3 stage )
  • WPA3 | Isolate Clients | Guest WiFi | WiFi MAC Filtering
Network
  • LAN DHCP config | Auto APN Cellular Connectivity
  • Cellular Network Priority | Network Band Lock Option
  • Router Operations Mode | AP, LAN Repeater, Client
  • Router Wireless Repeater Mode | Statice Lease | LAN Ethernet Port
    Enable/Disable
Firewall
  • Allow whitelist/blocklist IP | IPSec | OpenVPN | Content Filter Service
  • Port Forward | Captive Portal | VLAN | Schedule Internet Access
  • IDS Threat detect and prevent | Traffic monitoring | Block geographic location
Interface
  • USB 3.0 port.
  • 4 x LAN 1GB Ethernet RJ-45 ports | 1 x WAN 1GB Ethernet RJ-45 ports.
  • 4x SMA Cellular Connector | 4 x SMA WiFi Connector.
  • Nano SIM Card.
Environmental
  • Operation Temperature -30°C to +75°C (-31°F~167°F).
  • Extended Temperature -40°C to 85°C (-40°F~176°F).
  • Relative Humidity ≤90%, non-condensation.
Certification
  • FCC, PTCRB, T-Mobile,*AT&T, *Verizon
Power Adapter
  • PoE | Input AC100 ~240V | Output 48v,2A
Product SKU
  • RC500-O | 5G Outdoor Router with WiFi
  • RC500-T | 5G Outdoor Data Terminal
  • RC500-W | Wireless Access Point

Mounting Options

Outdoor-Antenna-Qikcell

L-Bracket

Used for horizontal wall mounting indoor/outdoor on a wall
Outdoor-Antenna-Qikcell

M-Bracket

Used for vertical mounting indoor/outdoor for directional gain
Outdoor-Antenna-Qikcell (1)

Screw Mount

Used for vehicle application rooftop mounting

Connector Options

connector1-removebg-preview

SMA

TS9

connector3-removebg-preview

N-Type
